NEMA 34

NEMA 34 Stepper Motor 86x86mm (3.39x3.39in) holding torque up to 12Nm (1416oz-in)

Related Products

Stepper Drives Stepper Drives
  • Fast mounting on DIN rail
  • Integrated oscillator
  • Low-cost versions
  • Up to 3000rpm at 1/128 steps/rev
  • 32bit mathematical functions
  • FREE programming software!

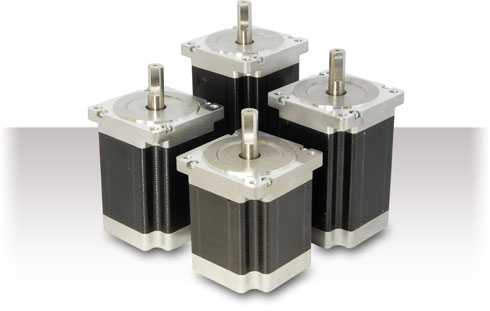

NEMA 34 The family of NEMA34 stepper motors spread over six different stator lengths.

The maximum torque exceeds 12Nm (1416oz-In) placing this series of stepper motors among the best performing commercially available.

All the motors have 8 wires and can be used both in bipolar and unipolar mode.

When the motors are used in bipolar mode (recommended to obtain the best performance) it is possible to choose between a series type connection, to limit the phase current, or parallel type, for applications exploiting the motors at high speeds.

The 14mm shaft diameter ensures stability in applications with belt transmission. Upon request the motor can be realized with 12mm shaft with key, with double shaft, etc.

Family Overview

A wide range of stepper motors available from stock characterized by high torque, compact size and competitive price.

LAM Technologies offers high quality»read more

Products

NEMA 34 motors with Encoder NEMA 34 motors with Encoder
  • High linearity encoder
  • Zero pulse (also called Index pulse)
  • Line driver outputs
M1343011 M1343011
  • Torque 3.1Nm (439oz-In)
  • Current 2.8Arms or 5.6Arms
  • NEMA 34 standard flange
M1343020 M1343020
  • Torque 4.4Nm (623oz-In)
  • Current 2.8Arms or 5.6Arms
  • NEMA 34 standard flange
M1343021 M1343021
  • Torque 4.4Nm (623oz-In)
  • Current 3.5Arms or 7.1Arms
  • NEMA 34 standard flange
M1343031 M1343031
  • Torque 6.8Nm (963oz-In)
  • Current 3.5Arms or 7.1Arms
  • NEMA 34 standard flange
M1343041 M1343041
  • Torque 8.1Nm (1147oz-In)
  • Current 3.5Arms or 7.1Arms
  • NEMA 34 standard flange
M1343050 M1343050
  • Torque 9.2Nm (1303oz-In)
  • Current 3.5Arms or 7.1Arms
  • NEMA 34 standard flange
M1343051 M1343051
  • Torque 9.2Nm (1303oz-In)
  • Current 5Arms or 10Arms
  • NEMA 34 standard flange
M1343060 M1343060
  • Torque 12.1Nm (1714oz-In)
  • Current 5Arms or 10Arms
  • NEMA 34 standard flange
