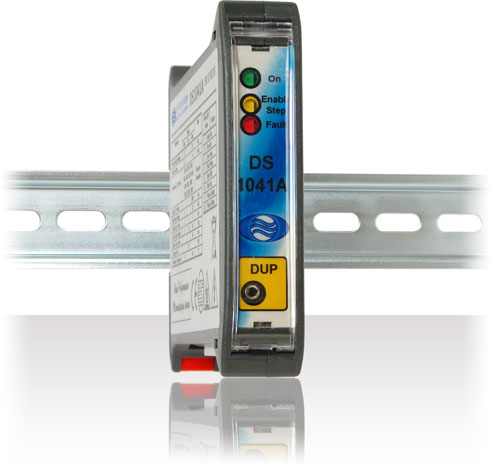

The connection to the motor, to the logic and power signals are realized by useful removable … »read more
Technical Data
Power Supply Voltage | From 16Vac up to 36Vac |
Phase Current | From 0.3Arms up to 1.4Arms in increments of 0.1Arms |
Control Mode | Step and Direction. Start/Stop |
Digital Inputs | 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST Operating from 3V up to 28V at constant current Each one NPN, PNP or Line Drive compatible |
Step subdivision | Microstepping. Selectable from full step to 1/128 step |
STEP Max Frequency | 300KHz |
Protections, Alarms and Diagnostics | Over and under voltage, thermal, Phase Motor interrupted Short circuit phase to phase, phase to ground, phase-supply Univocal indication for each anomaly |
Connections | By functional removable terminal block. Section of cable up to AWG14 |
Dimensions | 100(H) x 22.7(L) x 119(W) mm 3.94(H) x 0.89(L) x 4.69(W) inches |
Weight | 190g 6.4oz |
Benefits
- AC power supply
- Fast mounting on DIN rail
- Compact size
- Integrated oscillator
- Gate function for the control of several drives with a single STEP source
- Resolution up to 25600 steps/rev
- Damping of resonances
- Power output stage at high efficiency
- Digital I/O signal conditioning
- IP20 protection grade
