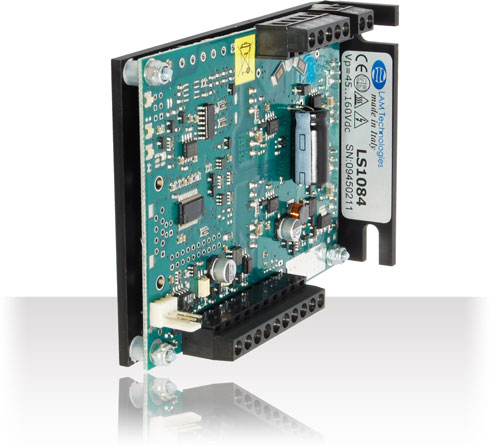

The LS10 stepper motor driver series offers an excellent price/performance ratio.
They are realized in open design and are easily mountable on the panel thanks to the L-shaped support integrated … »read more
Technical Data
| Power Supply Voltage | From 45Vdc up to 160Vdc |
| Phase Current | From 2Arms up to 4Arms in increments of 0.1Arms |
| Control Mode | Step and Direction. Start/Stop |
| Digital Inputs | 4 optoisolated: STEP, DIRECTION, ENABLE, BOOST
Operating from 3V up to 28V at constant current
Each one NPN, PNP or Line Drive compatible |
| Step subdivision | Microstepping. Selectable from full step to 1/128 step |
| STEP Max Frequency | 300KHz |
| Protections, Alarms and Diagnostics | Over and under voltage, thermal, Phase Motor interrupted
Short circuit phase to phase, phase to ground, phase-supply
Univocal indication for each anomaly
|
| Connections | By terminal block. Section of cable up to AWG14 |
| Dimensions | 78(H) x 110(L) x 25(W) mm
3.07(H) x 4.33(L) x 0.98(W) inches |
| Weight | 155g
5.2oz |
Benefits
- Compact size
- Resolution up to 25600 steps/rev
- Integrated oscillator
- Gate function for the control of several drives with a single STEP source
- Damping of resonances
- Power output stage at high efficiency
- Digital I/O signal conditioning
- Low cost
